Parking Lot Striping and Layout: A Practical Guide
Updated July 11, 2026
Parking lot layout balances how many stalls fit against safe, code-compliant circulation. Standard stalls are commonly around 9 feet wide by 18 feet long with drive aisles sized for one- or two-way traffic, but exact dimensions are set by local code and site conditions. Angled parking is easier to enter but fits fewer cars than 90-degree parking; every lot also needs the correct number and layout of accessible stalls and access aisles. A good striping contractor lays out the lot to maximize usable capacity without compromising flow, fire access, or accessibility.
Layout is where striping stops being cosmetic: stall size, aisle width, parking angle, and ADA placement together decide how many cars fit and whether the lot is safe and compliant.
This guide explains the main layout variables in plain terms so you can have a productive conversation with a contractor — not to substitute for local code or a designer. Compare parking lot striping and layout contractors for the work.
Layout changes are a common reason to restripe — see when to restripe a parking lot.
The core layout variables
A few dimensions drive most of the layout. The figures below are common planning ranges, not code — actual requirements are set by your local jurisdiction and the site.
| Element | Common range | Trade-off |
|---|---|---|
| Standard stall width | ~8.5 – 9.5 ft | Wider is easier to use, fits fewer cars |
| Standard stall length | ~18 ft | Overhang can sometimes reduce depth |
| One-way drive aisle | ~12 – 15 ft | Narrower fits more parking, tightens circulation |
| Two-way drive aisle | ~24 ft | Needed for two-way flow and larger vehicles |
| Parking angle | 45°, 60°, or 90° | Angled is easier to enter; 90° fits the most cars |
Angled vs. 90-degree parking
Ninety-degree (perpendicular) parking fits the most vehicles and supports two-way aisles, which is why it's common in larger lots. Angled parking (45 or 60 degrees) is easier to pull into and works well with one-way circulation, but it uses more space per car and reduces total capacity. The right choice depends on lot shape, traffic volume, and how much circulation space you can give up.
Accessible stalls and access aisles

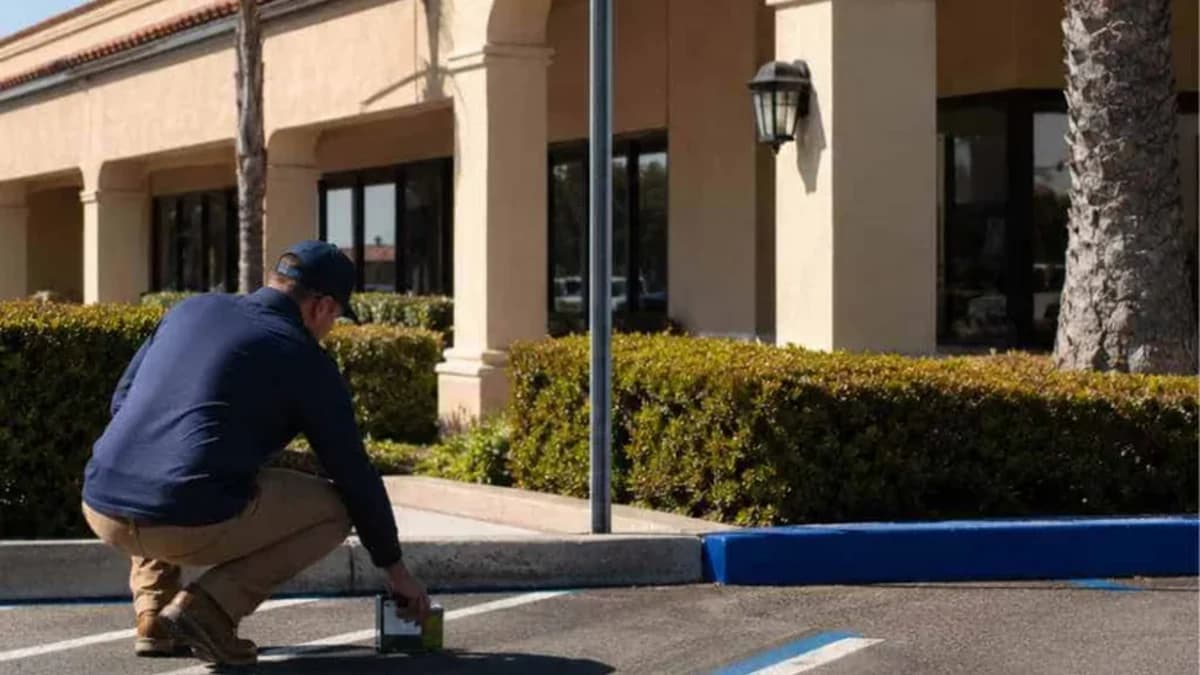

Every lot with parking needs accessible stalls, and the number scales with the total stall count. Accessible stalls require an adjacent striped access aisle, correct signage, and specific dimensions and slope limits. These are regulated, and the exact counts and dimensions vary by jurisdiction and are not something striping alone can be assumed to satisfy — see can striping alone fix ADA parking compliance? Plan accessible parking as part of the layout from the start, not as an afterthought.
Traffic flow, fire access, and other markings
A good layout also handles circulation and safety markings: directional arrows, stop bars, crosswalks, loading zones, fire lanes, and no-parking areas. Fire access in particular is code-driven and must stay clear. Thinking about flow — how cars enter, circulate, and exit — prevents bottlenecks and conflicts that pure stall-count optimization can create.
Frequently asked questions
How big is a standard parking stall?
Standard stalls are commonly around 9 feet wide by 18 feet long, with drive aisles sized for one- or two-way traffic. Exact dimensions are set by local code and the site.
Does angled or 90-degree parking fit more cars?
Ninety-degree parking fits the most cars and supports two-way aisles. Angled parking is easier to enter but uses more space per car, reducing total capacity.
How many accessible stalls does a parking lot need?
It scales with the total stall count and is set by regulation that varies by jurisdiction. Each accessible stall also needs a striped access aisle, correct signage, and compliant dimensions and slope.
Can a striping contractor design the layout?
Experienced striping contractors lay out stalls, aisles, and flow, but code compliance and complex sites may also involve a designer or the local jurisdiction. Confirm who is responsible for meeting code.
Before you hire: The Pavement Directory does not provide legal or compliance advice. ADA and accessibility requirements vary by site, jurisdiction, and project scope. Contractors may perform striping, grading, concrete, or asphalt corrections, while CASp inspectors or accessibility consultants may be needed for compliance review. Consult qualified professionals when compliance is material.
